Preventing Pipe Failure and Major Bursts

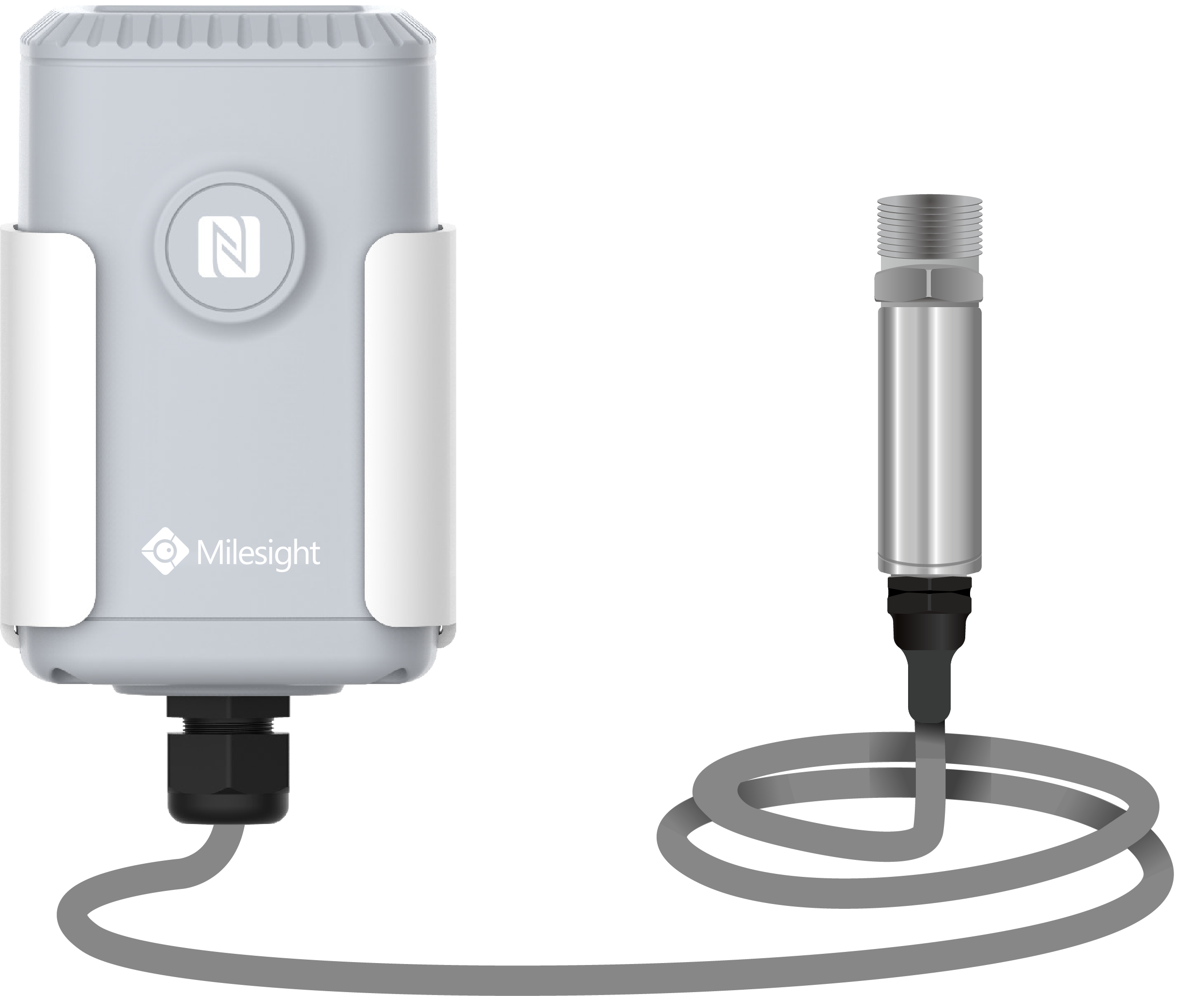

The EM500 Pipe Pressure Sensor that can easily be installed, constantly monitors pipes of various kinds, varying from liquids to gases in various settings to constantly monitor pipe pressure so that pipe pressure abnormality can be detected in time to ensure workplace safety.
The smart device has an exceptional high compatibility with various piping systems, ranging from liquids to gases, allowing seamless integration into various distinct industrial settings. It is an ideal smart device for a wide range of industrial applications to ensure higher work safety.
With its impressive measuring accuracy of up to ±0.5% FS, it can gauge minimal changes pipe pressures, to prevent pipe failures and major bursting that can put lives into danger. It is the perfect device to possess in raising the safety bars.
The device is able to withstand great shock, vibration from machines, and corrosion from harsh chemicals. Its resistance allows the device to perform marvelously even in harsh working environments, making it ideal for various industrial applications.
EM500-PP is an energy saving battery-powered device empowered by LoRaWAN® technology that allows a wide range of detection. Most importantly, it also enables simple and hassle-free wireless deployment that simplifies the installation process, and highly secured data transmission that ensures high data accuracy for better informed decision making.
The LoRaWAN® technology enables the sensing device to achieve wide range detection with minimal power consumption. This outstanding energy efficient feature allows it to effectively conserve electricity usage and prolong the battery's lifespan to up to 10 years. It is suitable for occasions with limited electricity supply and ideal for energy conserving.
Switching on/off and configuring the device via NFC technology from a mobile phone or PC
Install the Milesight ToolBox.
Enable NFC and run ToolBox
Attach your phone to the device.
Verify the password and
start configuring.
EM500-PP LoRaWAN® Pipe Pressure Sensor has been designed to allow installation in various settings, including Wall Mounting, Poll Mounting, and DIN Rail Mounting.
Wall Mounting

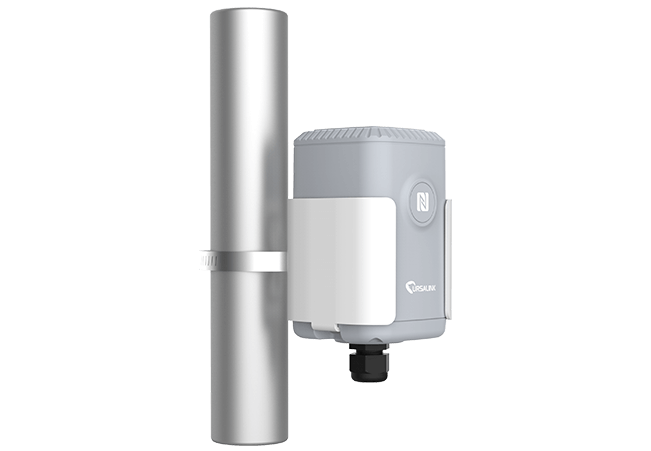

Pole Mounting
DIN Rail Mounting
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Pressure Type | Gauge Pressure |
| Range | 0 - 1600 kPa (16 Bar) |
| Accuracy | ± 0.5% FS |
| Resolution | 1 kPa (0.01 Bar) |
| Overload | 150% FS |
| Long-term Stability | ± 0.3% FS/year |
| Process Connection | G 1/2” Male |
| Operation | |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | Mobile App (via NFC) or PC software(via USB Type-C) |
| Physical Characteristics | |
| Cable Length | 1.5 m |
| Power Supply | 19000 mAh Li-SOCL2 battery (ER34615) |
| Battery Life* | 10 years (10 min interval) |
| Operating Temperature | -30°C to +70°C (Transceiver)/-10°C to +70°C (Pipe Pressure Sensor) |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | IP67(Transceiver)/IP65(Pipe Pressure Sensor) |
| Dimension | Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) Pipe Sensor: 67.5 × ф27 mm (2.7 × ф1.1 in) |
| Installation | Pole, wall or DIN Rail Mounting |
| Approvals | |
| Regulatory | CE, FCC, RoHS |
