    Home » Milesight UF51 5G CPE

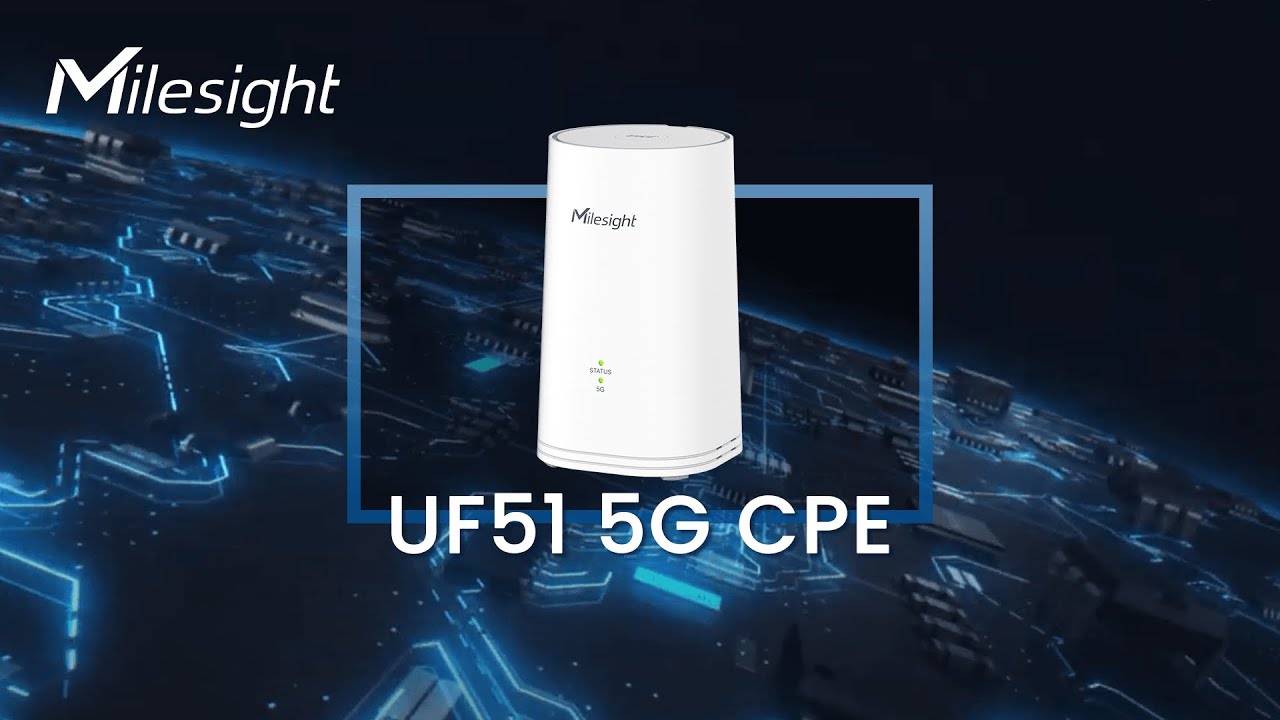

    Milesight 5G CPE

    Milesight UF51 5G Icon5G NR Sub-6 GHz

    Milesight UF51 NSA SANSA & SA

    Milesight UF51 WiFi IconDual-Band Wi-Fi

    Milesight UF51 IP67 IconIP67 Rating

    Unleash Your Imagination with UF51 5G CPE

    Aesthetic Design

    Unlike its powerful performance would suggest, the sleek design makes UF51 5G CPE fit in your surroundings nicely and neatly.

    Milesight UF51 5G CPE

    Outstanding Performance as Always

    Qualcomm Quad-Core Processor

    512 MB DDR3 RAM

    8 GB Flash

    Fast, Like No One Before

    2.5 Gbps Downlink

    4 × 4 MIMO

    NSA & SA Modes

    UF51 5G CPE delivers fast 5G speed, higher bandwidth, and low latency to more businesses.

    Dual Band Wi-Fi

    1.733 Gbps Peak Speed

    IEEE 802.11b/g/n/ac

    2 × 2 MIMO

    • Unparalled 5G Speed to Download
    • More Devices Connected and Level-up Your Network Coverage with Strong Signal

    Built-in Omni Antenna

    The UF51 5G CPE is equipped with 8 built-in omni directional antennas for sub-6 Ghz band to receive best signals wherever it is placed.

    Milesight Omni Antenna

    Accelerate Your Business in Most Environment

    Desktop InstallationWall MountingPole Mounting

    Specifications | Documents

    Hardware System CPU Qualcomm Quad-core ARM Cortex-A7, 716.8 MHz
    Memory 512 MB DDR3 RAM and 8 GB Flash
    Cellular Interface Network 5G/4G LTE
    Antenna 8 × Internal Antennas
    SIM Slot 1(Mini SIM-2FF)
    Ethernet Interface Numbers 2 × 10/100/1000 Mbps
    Property 1 × WAN + 1 × LAN or 2 × LAN
    Mode Full or half duplex (Auto-Sensing)
    PoE 1 × 802.3af PoE PD on WAN/LAN Port
    Wi-Fi Interface Antenna 4 × Internal Antennas
    Standards IEEE 802.11b/g/n,2.4 GHz IEEE 802.11a/n/ac,5 GHz
    Tx Power 2.4 GHz: 26dBm (max) 5 GHz: 26.4dBm (max)
    Rx Sensitivity 2.4G:
    802.11b: ≤ -92dBm@11Mbps
    802.11g: ≤ -78dBm@54Mbps
    802.11ac VHT20: ≤ -91dBm@MCS0
    802.11ac VHT20: ≤ -66dBm@MCS8
    802.11ac VHT40: ≤ -88.5dBm@MCS0
    802.11ac VHT40: ≤ -64dBm@MCS8
    5G:
    802.11a: ≤ -91dBm@6Mbps
    802.11a: ≤ -76dBm@54Mbps
    802.11ac VHT20: ≤ -90dBm@MCS0
    802.11ac VHT20: ≤ -68dBm@MCS8
    802.11ac VHT40: ≤ -87dBm@MCS0
    802.11ac VHT40: ≤ -65dBm@MCS9
    802.11ac VHT80: ≤ -84dBm@MCS0
    802.11ac VHT80: ≤ -60dBm@MCS9
    Modes AP and Client mode
    Security WPA/WPA2 authentication, WEP/TKIP/AES encryption
    GPS 1(Optional) Antenna 1 × Internal Antenna
    Technology GPS/GLONASS/Beidou/Galileo/QZSS
    Serial Interface Numbers 1 × RS232 or 1 × RS485 (Switchable)
    Connector 3.5 mm Terminal Block
    Baud Rate 300bps to 230400bps
    DI/DO Numbers 1 × DI (dry contact) + 1 × DO (wet contact), galvanic isolation
    Connector 3.5 mm Terminal Block
    Maximum V/A 0.3A@30VDC (DO)
    Others Reset Button 1 × RESET
    LED Indicators 1 × STATUS,1 × 5G (Cellular Networks)
    Built-in Watchdog, RTC, Timer
    Software Network Protocols PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, etc.
    VPN DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
    Security Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
    Management Web, CLI, SMS, On-demand dial up, SNMP v1/v2c/v3, DeviceHub
    AAA Radius, Tacacs+, LDAP, Local Authentication
    Multilevel Authority Multiple Levels of User Authority
    Reliability VRRP, WAN Failover
    Serial Port Transparent (TCP Client/Server, UDP), Modbus Master/Slave, Modbus Gateway (Modbus RTU to Modbus TCP)
    Power Supply Power Input² 1. 9-48 VDC, with Surge-Protection and Reverse Polarity Protection 2. 802.3 af PoE PD
    Power Connector 2-pin 3.5 mm Terminal Block
    Physical Characteristics Ingress Protection IP67
    Housing Polycarbonate + Metal
    Dimension No Waterproof Connector: ф105 x 110 x 188 mm (ф4.13 x 4.33 x 7.40 in) With Waterproof Connector: ф105 x 110 x 218 mm (ф4.13 x 4.33 x 8.58 in)
    Installation Desktop, Pole Mounting, Wall Mounting, Bottom Magnetic/Lock Mounting
    Environmental Operating Temperature -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C
    Storage Temperature -40°C to +85°C (-40℉ to +185℉)
    Ethernet Isolation 1.5 kV RMS
    Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
    UF51 Datasheet
    UF51 User Guide
