    Home » EM500 Series LoRaWAN® Sensors » EM500-CO2 LoRaWAN Sensor | Carbon Dioxide Sensor

    Carbon Dioxide Sensor

    EM500-CO2

    • 4 Sensors in 1
    • LoraWan® Wireless
    • Easy Configuration via NFC
    • 10 Years Battery Life


    EM500 CO2 Carbon Dioxide Sensor EM500 CO2 Carbon Dioxide Sensor EM500 CO2 Carbon Dioxide Sensor EM500 CO2 Carbon Dioxide Sensor
    EM500 CO2 Carbon Dioxide Sensor EM500 CO2 Carbon Dioxide Sensor EM500 CO2 Carbon Dioxide Sensor EM500 CO2 Carbon Dioxide Sensor

    CO2 Sensor (4 in 1)

    EM500-CO2

    EM500-CO2 is designed for measuring gaseous carbon dioxide (CO2) concentration in harsh environments. It is useful in the application where knowing CO2 level is important like greenhouse, building ventilation, fruit and vegetable storage. Besides, it also supports temperature, humidity and barometric pressure measurement.

    CO2 Sensor (4 in 1)

    measuring rangeMeasuring ranges from 400ppm to 5000ppm

    easy installationEasy installation in any enclosed areas or outdoors

    EM500 CO2 4 in 1 (CO2, barometric pressure, humidity, temperature)

    Smart Wine Cellar >>>

    Carbon dioxide is a by-product produced during the fermentation of wine. Because the density of carbon dioxide is heavier than air, it is easy to overflow from the fermentation tank. When it falls on the ground of the winery, it will form fatal and undetectable potholes, which will bring great hidden danger to the safety of the operators.

    Smart Wine Cellar
    forest fire detection

    Forest Fire Detection <<<

    Nowadays, forest fires often cause serious threats to the environment and produce real emergency situations and natural disasters. Most of the times, when someone notices about the fire, it is too late because the fire has spread already. Thus, the enhancement of forest fire detection system by CO2 (carbon dioxide) monitoring can be evaluated.

    Cloud Web & APP

    Cloud Web & APP:

    CO2 Sensor works perfectly with Milesight IoT Cloud (Web & App), which allows you to monitor your data in the office or on the go. With a drag-and-drop experience, Milesight IoT Cloud provides rich features such as intuitive widgets, triggers, sharing and transfer ownership of devices, layers, etc.

    LoRaWAN Wireless Transmission

    Ultra-low power consumption and easy deployment

    Built-in 19000 mAh high-capacity battery can be used for 10 years.

    EM500 CO2 Ultra-low Power

    Simple and Easy to Use
    Configure Your Device via NFC

    Milesight ToolboxDownload Toolbox >>>
    Milesight NFCTurn on NFC and attach
    the sensor to the NFC area
    Configure your sensorConfigure your sensor

    Related Products

    EM500-UDL

    Ultrasonic Distance/Level Sensor

    EM500-SWL

    Submersible Water Level Sensor

    EM500-PT100

    Industrial Temperature Sensor

    EM500-LGT

    Light Sensor

    EM500-PP

    Pipe Pressure Sensor

    EM500-SMTC

    Soil Moisture, Temperature and Electrical Conductivity Sensor

    Specifications | Documents

    LoRaWAN® Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
    Tx Power 16dBm(868)/20dBm(915)/19dBm(470)
    Sensitivity -137dBm @300bps
    Mode OTAA/ABP Class A
    Measurement (CO2)
    (0 to 50°C)
    Range 400 – 5000 ppm
    Resolution 1 ppm
    Accuracy ±30 ppm or ±3 % of reading
    Physical Characteristics Power Supply 19000 mAh Li-SOCl2
    Operating Temperature -30°C to +70°C
    Ingress Protection IP65
    Dimension 156.1 × 71 × 69.5 mm

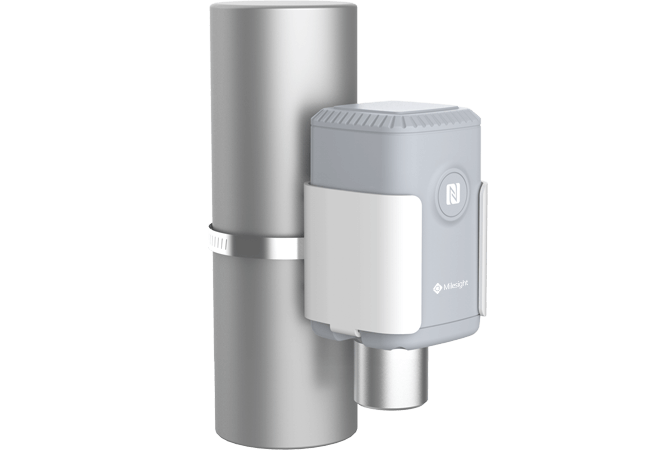

    Mounting DIN rail, wall, pole mounting
    EM500-CO2 Datasheet
    EM500-CO2 User Guide
