    Home » EM500 Series LoRaWAN® Sensors » EM500-LGT LoRaWAN Light Sensor


    Light Sensor

    EM500-LGT

    • Illuminance Measurement
    • LoRaWAN® Wireless
    • Easy Configuration via NFC
    • 10 Years Battery Life

    light sensor light sensor em500 lgt em500 lgt
    light sensor light sensor em500 lgt em500 lgt

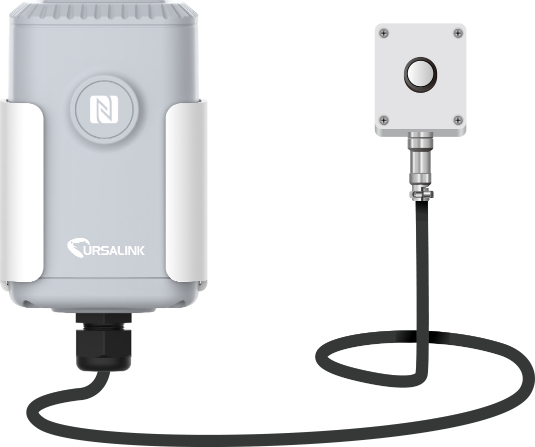

    Light Sensor

    EM500-LGT

    EM500-LGT is designed for ambient light intensity detection in harsh environments. It is useful in many applications, such as brightness control, security, horticulture, floriculture and so on.

    light sensor

    chart iconMeasuring ranges from 0 to 100,000 lux

    fast iconFast Response 1 second

    battery icon 10-year battery life with low maintenance cost

    light icon Accurately detect any light changes

    Lighting the Way to Crop Health

    Today, farming is barely sustainable without implementing modern farm technologies. When it comes to growing crops, it’s a balancing act. You need just the right amount of sun, water, and soil composition to keep plants happy and blooming.

    Cloud Web & APP

    Cloud Web & APP:

    Light Sensor works perfectly with Milesight IoT Cloud (Web & App), which allows you to monitor your data in the office or on the go. With a drag-and-drop experience, Milesight IoT Cloud provides rich features such as intuitive widgets, triggers, sharing and transfer ownership of devices, layers, etc.

    LoRaWAN Wireless Transmission

    Ultra-low power consumption and easy deployment

    Built-in 19000 mAh high-capacity battery can be used for 10 years.

    Ultra-low power

    Simple and Easy to Use
    Configure Your Device via NFC

    Download ToolboDownload Toolbox >>>
    Turn on NFCTurn on NFC and attach
    the sensor to the NFC area
    Configure your sensorConfigure your sensor

    Related Products

    EM500-CO2

    Carbon Dioxide Sensor

    EM500-UDL

    Ultrasonic Distance/Level Sensor

    EM500-SWL

    Submersible Water Level Sensor

    EM500-PT100

    Industrial Temperature Sensor

    EM500-PP

    Pipe Pressure Sensor

    EM500-SMTC

    Soil Moisture, Temperature and Electrical Conductivity Sensor

    Specifications | Documents

    LoRaWAN® Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
    Tx Power 20dBm
    Sensitivity -137dBm @300bps
    Mode OTAA/ABP Class A
    Measurement Range 0 ~ 100000 lux
    Accuracy ±3%
    Resolution 1 lux
    Physical Characteristics Power Supply 19000 mAh Li-SOCL2
    Operating Temperature -30°C to +60°C
    Ingress Protection Transceiver: IP66 (IP67 as required) Light Sensor: IP65
    Dimension 156.1 × 71 × 69.5 mm
    Mounting DIN rail, wall, pole
    EM500-LGT Datasheet
    EM500-LGT User Guide
